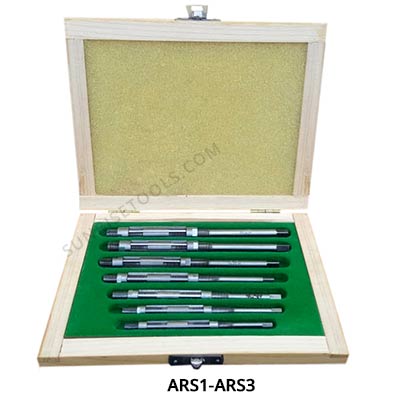

Adjustable Hand Reamers




Adjustable Hand Reamers


Description :- An adjustable hand reamer can cover a small range of sizes. They are generally referenced by a latter which equates to a size range. The Disposable blade made of high speed steel slide along a tapered groove. The act of tightening and loosening the restraining nuts at each end varies the size that may be cut.


Ref No. INDUSTRY STANDARD SIZE RANGE OF ADJUSTMENT (MM)
FOUR BLADE
AR - 1 HV 8A 6.35 - 7.15
AR - 2 HW 7A 7.15 - 7.95
AR - 3 HZ 6A 7.95 - 8.7
AR - 4 HY 5A 8.7 - 9.5
SIX BLADE
AR - 5 H1 4A 9.5 - 10.25
AR - 6 H2 3A 10.25 - 11
AR - 7 H3 2A 11 - 12
AR - 8 H4 A 12 - 13.5
AR - 9 H5 B 13.5 - 15
AR - 10 H6 C 15 - 16.75
AR - 11 H7 D 16.75 - 18.25
AR - 12 H8 E 18.25 - 19.75
AR - 13 H9 F 19.75 - 21.5
AR - 14 H10 G 21.5 - 24
AR - 15 H11 H 24 - 27
AR - 16 H12 I 27 - 30
AR - 17 H13 J 30 - 34
AR - 18 H14 K 34 - 38
AR - 19 H15 L 38 - 46
AR - 20 H16 M 46 - 56
AR - 21 H17 N 56 - 70
AR - 22 H18 O 70 - 85
AR - 23 H19 P 85 - 100


Adjustable Hand Reamers


Description :- An adjustable hand reamer can cover a small range of sizes. They are generally referenced by a latter which equates to a size range. The Disposable blade made of high speed steel slide along a tapered groove. The act of tightening and loosening the restraining nuts at each end varies the size that may be cut.


Ref No. INDUSTRY STANDARD SIZE RANGE OF ADJUSTMENT (MM)
FOUR BLADE
ARP - 1 HV 8A 6.35 - 7.15
ARP - 2 HW 7A 7.15 - 7.95
ARP - 3 HZ 6A 7.95 - 8.7
ARP - 4 HY 5A 8.7 - 9.5
SIX BLADE
ARP - 5 H1 4A 9.5 - 10.25
ARP - 6 H2 3A 10.25 - 11
ARP - 7 H3 2A 11 - 12
ARP - 8 H4 A 12 - 13.5
ARP - 9 H5 B 13.5 - 15
ARP - 10 H6 C 15 - 16.75
ARP - 11 H7 D 16.75 - 18.25
ARP - 12 H8 E 18.25 - 19.75
ARP - 13 H9 F 19.7 5- 21.5
ARP - 14 H10 G 21.5 - 24
ARP - 15 H11 H 24 - 27
ARP - 16 H12 I 27 - 30
ARP - 17 H13 J 30 - 34
ARP - 18 H14 K 34 - 38
ARP - 19 H15 L 38 - 46
ARP - 20 H16 M 46 - 56
ARP - 21 H17 N 56 - 70
ARP - 22 H18 O 70 - 85
ARP - 23 H19 P 85 - 100
